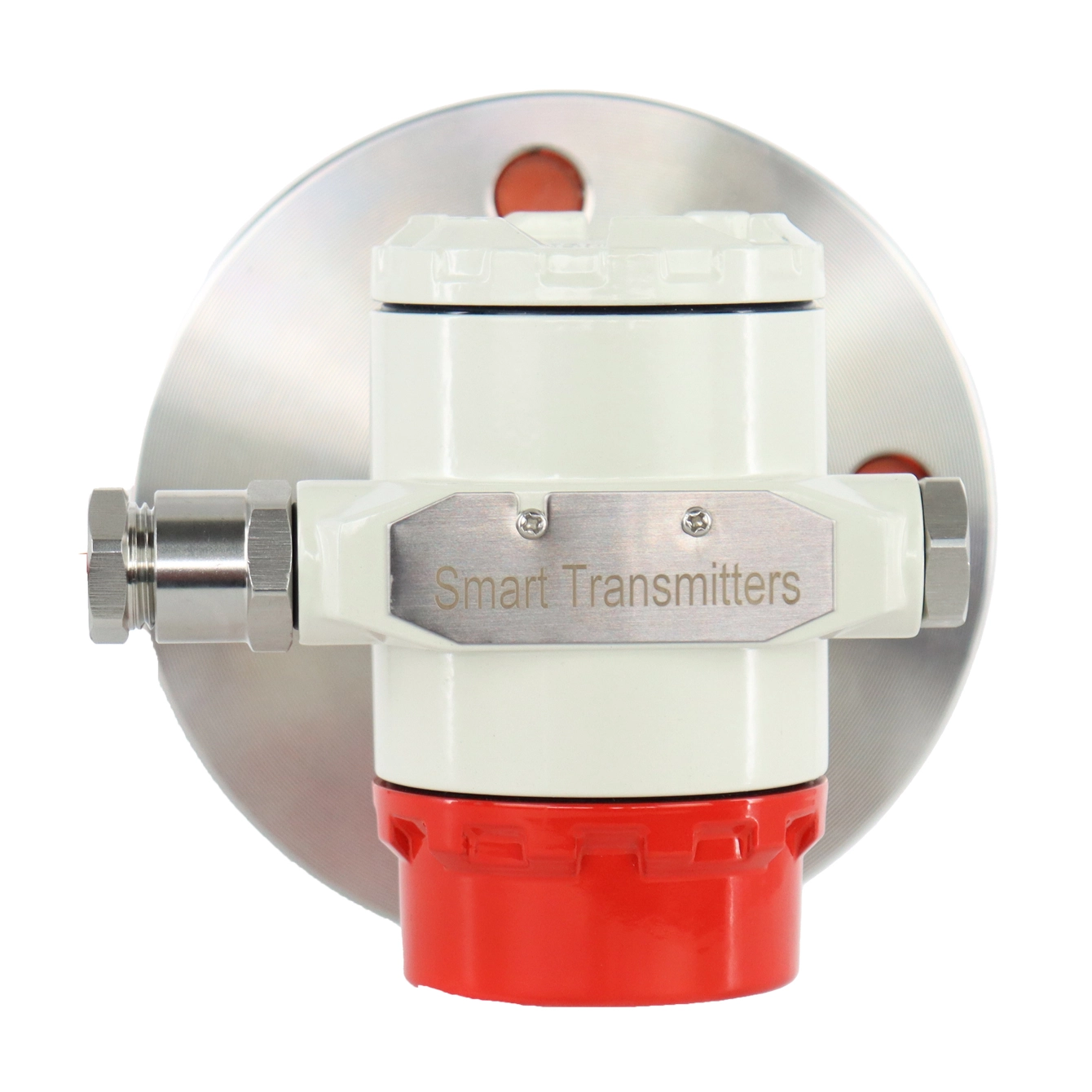

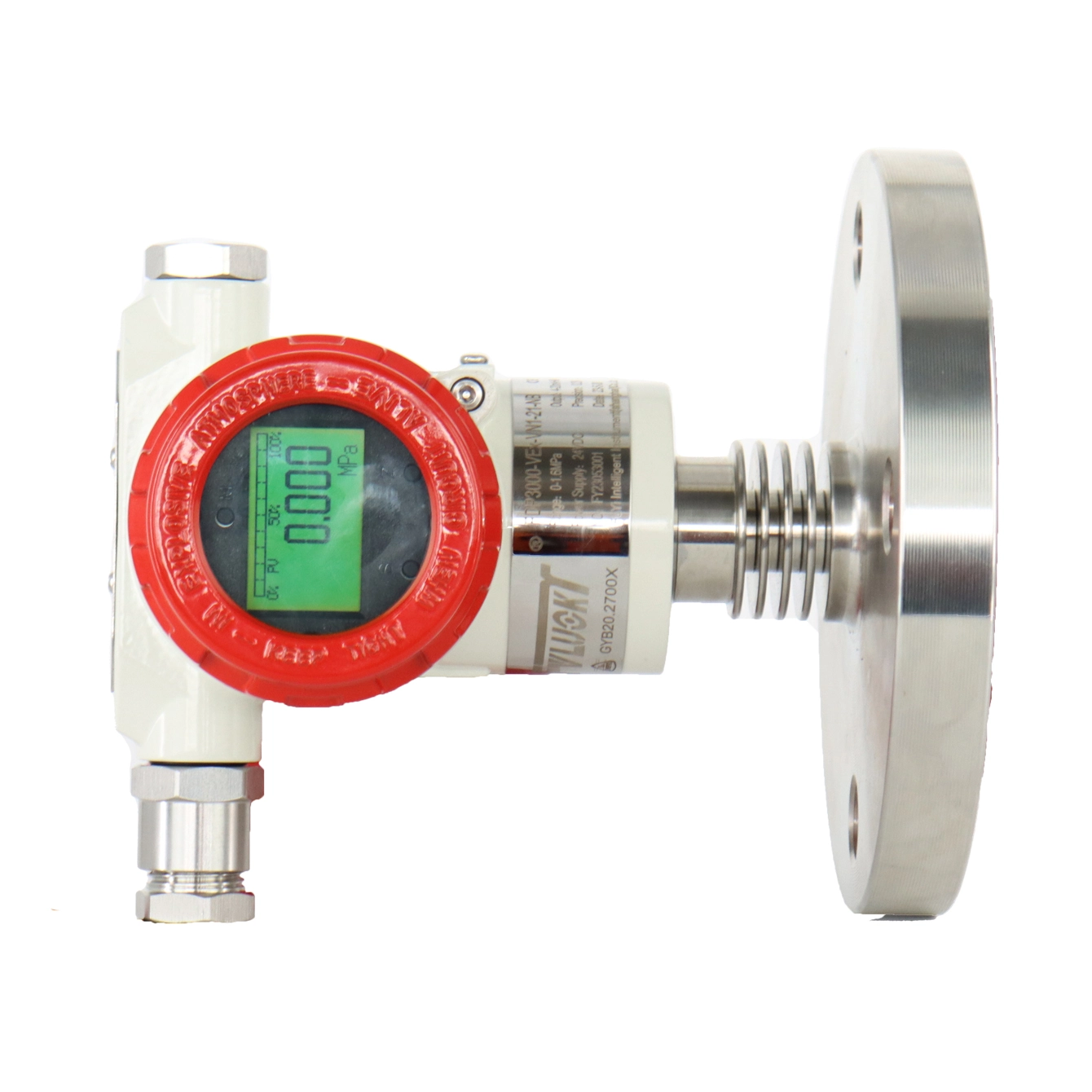

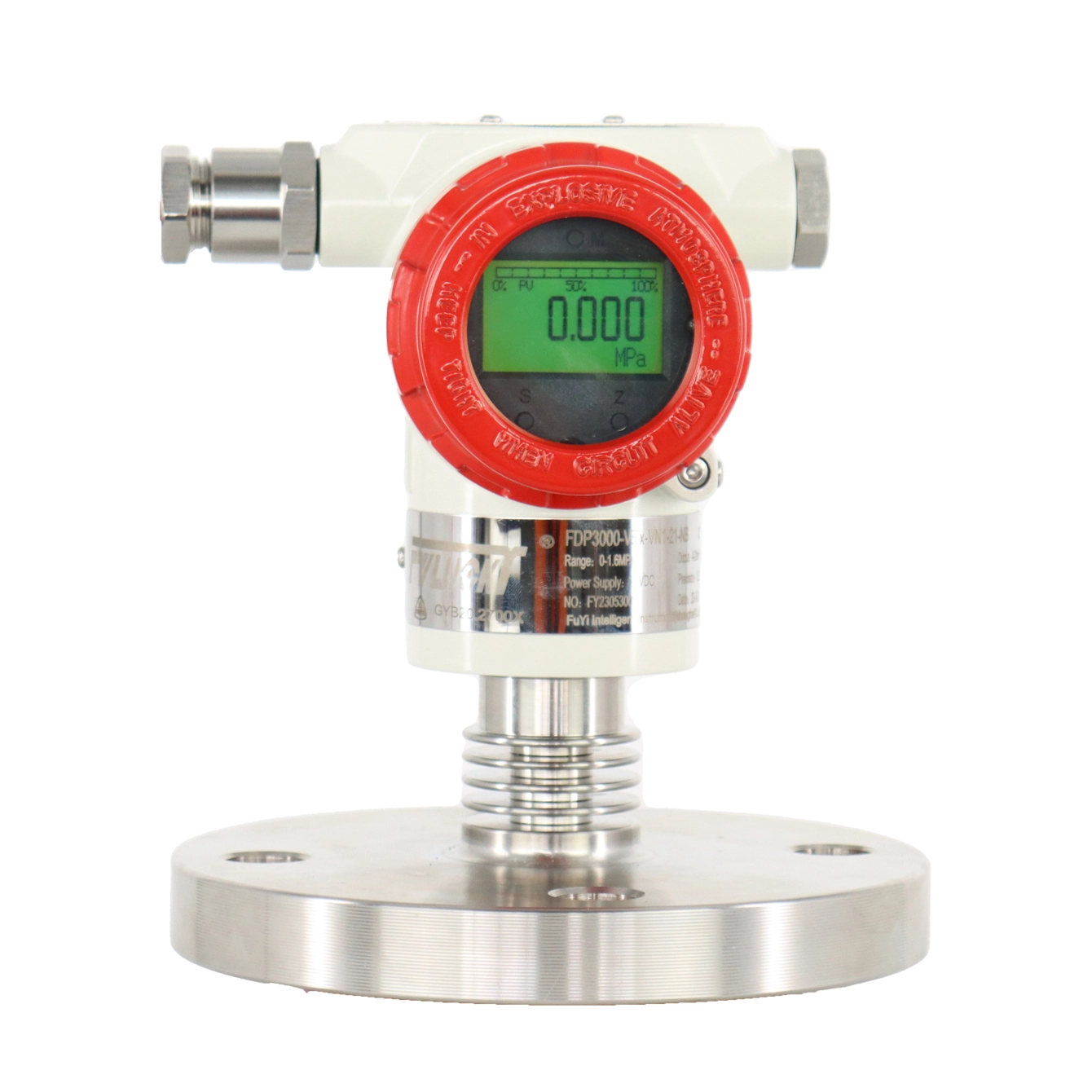

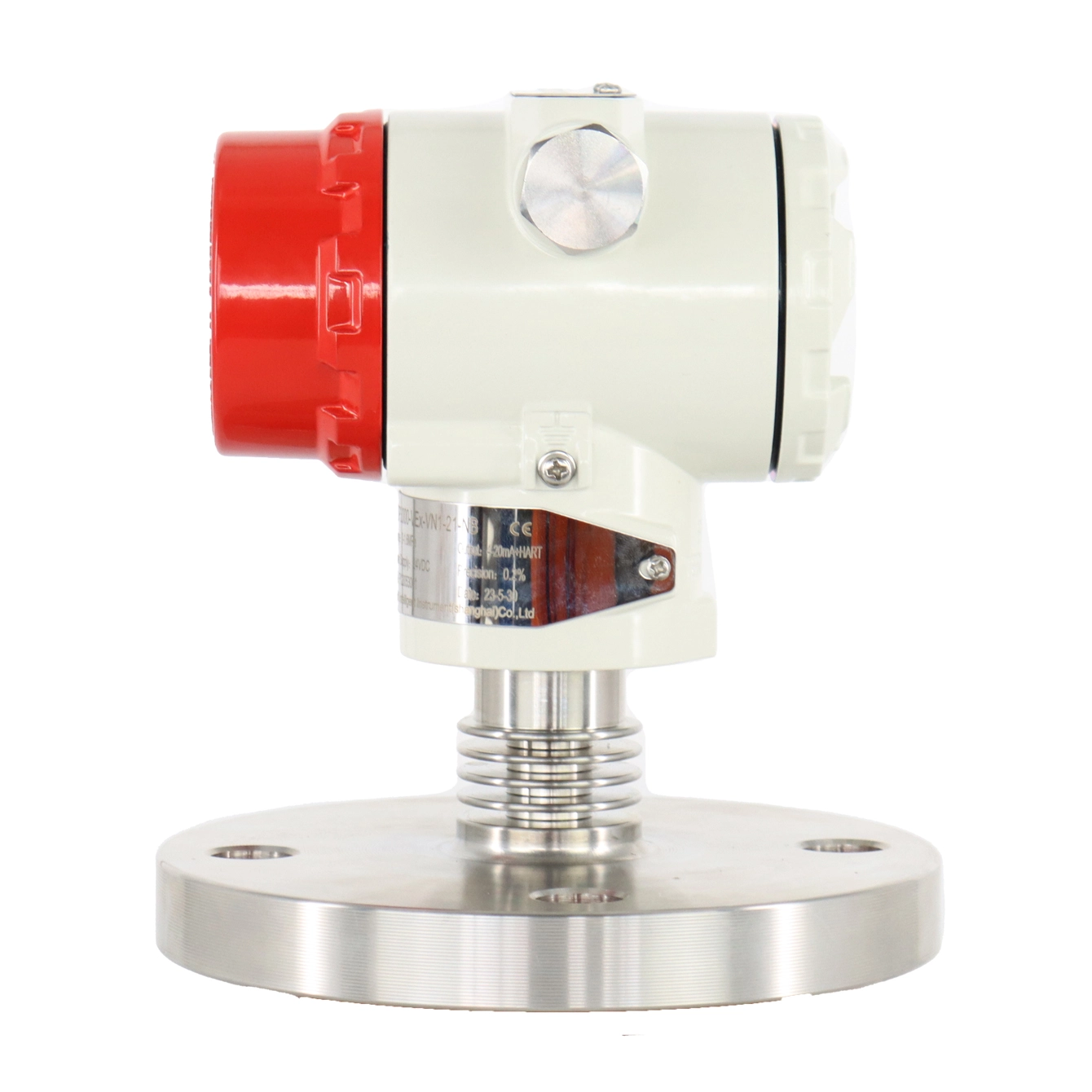

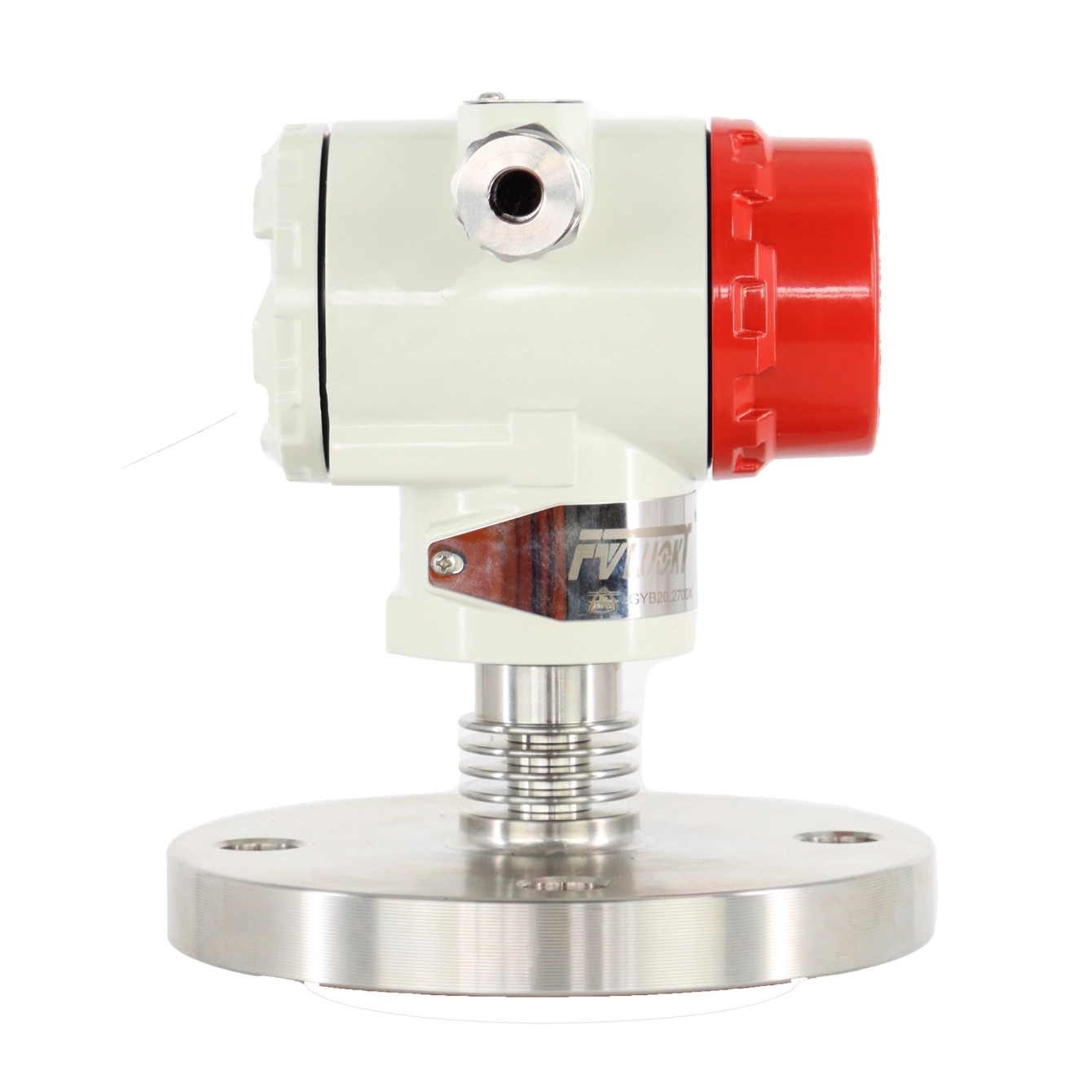

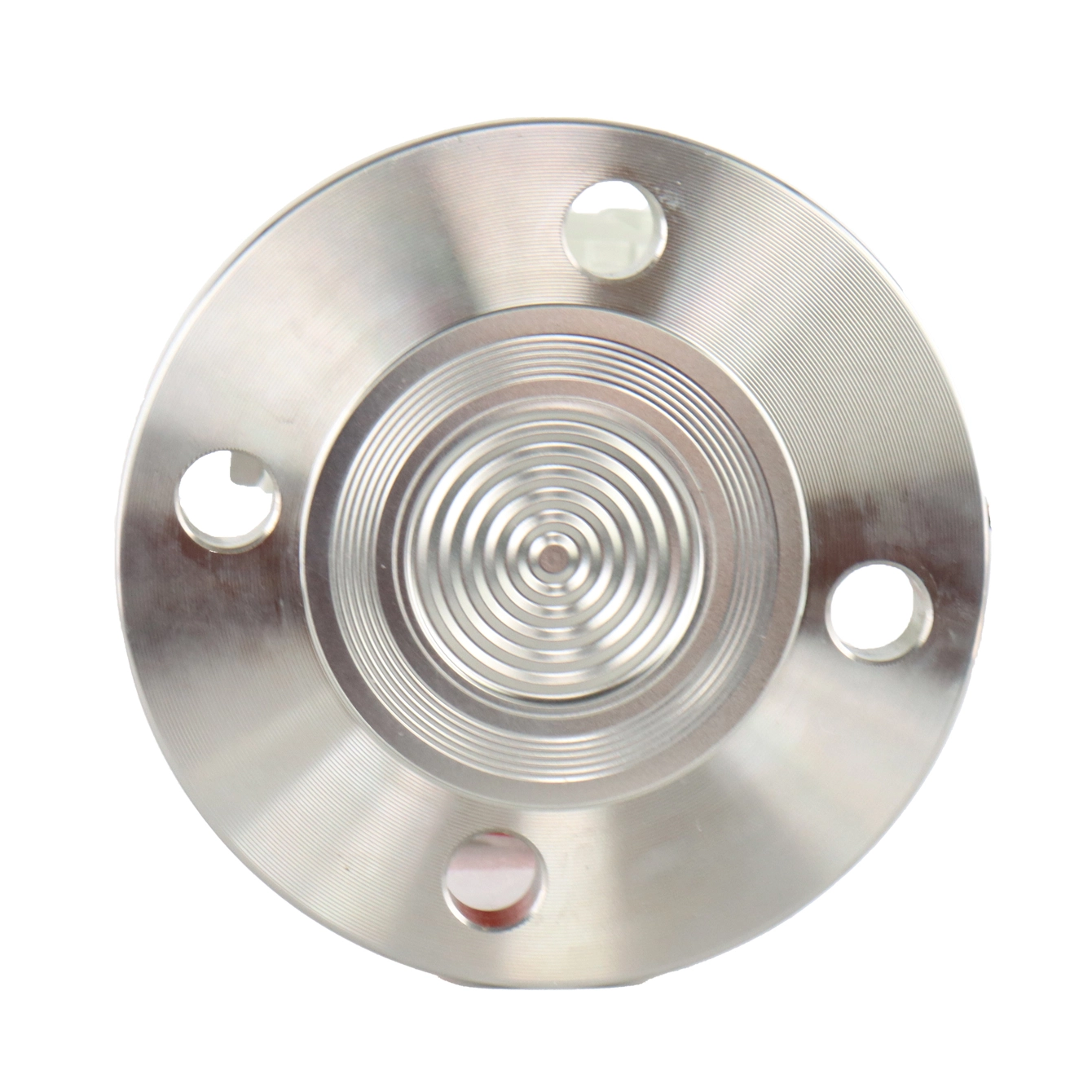

FDP3000-V Diaphragm Type Pressure Transmitter

The FvLuoky FDP3000-V Diaphragm Type Pressure Transmitter, featuring state-of-the-art single-crystal silicon technology with premium imported chips, is specifically engineered for high performance in the toughest industrial environments. This FvLuoky temperature measurement instruments, with its robust diaphragm flange design, offers unparalleled accuracy and reliability for pressure measurements across a multitude of industrial applications, ensuring optimal functionality and versatility.

instrument used to measure fluid pressure
  • instrument used to measure fluid pressure
  • instrument used for pressure measurement
  • instrument used for measurement of pressure
  • instrument used to measure gauge pressure
  • instrument used to measure water pressure
  • instrument of measure pressure
  • instrument to measure water pressure
Share It :

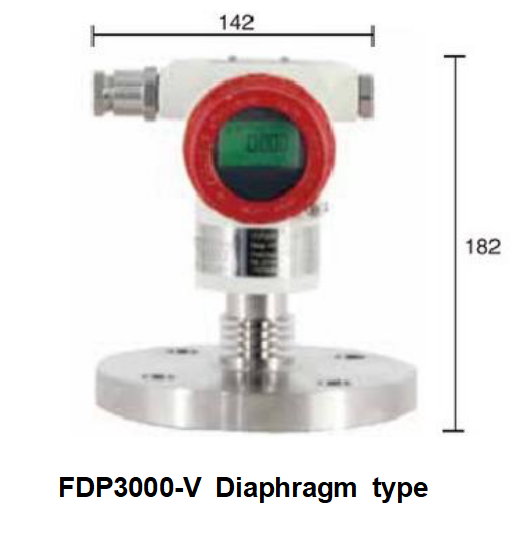

Dimensions Of FDP3000-V Diaphragm Type Pressure Transmitter

Dimensions Of FDP3000-V Diaphragm Type Pressure Transmitter


Parameter Of FDP3000-V Diaphragm Type Pressure Transmitter

Application

Pressure, level, differential pressure, density, interface, flow

Display

2-digit display & 0-100% bar chart

Measuring range

0-6Kpa~0-100Mpa

Display unit

19 standard measurement units

-100Kpa~10Mpa

Shell materia

Cast aluminum, SUS

Range ratio

100:1

Button

There are 3 buttons inside

Accuracy

±0.075%, ±0.2%, ±0.5%

Current output

2-wire 4-20 mA output with HART

stability

±0.1%

load

0-2119Q is working, 250-600QHART

Operating temperature

Sicone oil filing: -40~120℃

Power supply

10.5~55 VDC

Flling liquid: -10~80℃

communication

Hart communication (compatible)

Greatest pressure

100 Mpa

Damping setting

0-100 s (adjustable)

Material material

SUS304/SUS316/SUS316L

Response time

≤6 s

Measuring diaphragm

SUS316L/HC/Ta

Teetellation

method

M20*1.5,1/2"NPT,G1/2 /Hlange /welding base

Nameplate

SUS 304

Humidity

5-100%relative humidity

Electrical Interface

M20*1.5/1/2"NPT (Internal thread)

Start Time

At minimum damping, up to 2 seconds

Connection mode

M20*1.5/G1/2/1 /2"N PT/lange (1234in)

Zero check

Automatic zero zero adjustment with special buttons

Temperature influence

-20~80℃ The scope of ±(0.1+0.1TD)%

Ambient

-40~+85℃,

Overvoltage limit

Scale range 120%

Protection level

IP67

Shock effect

According to the GB/T1827.3/IEC61298- 3test,<0.1%URV

Explosion-proof grade

Ex ia IIC T4 Ex d IICT4~T6

lectromagnetic field / nterference

From30~1000MHz, Can be up to30A/m

Certified product

TUV-CE
